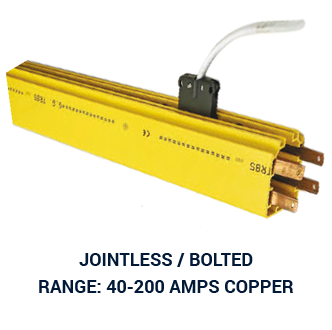

Deus RRC - DSL – Shrouded Conductor Bar System

• Safety: due to its isolation it is a protected line.
• Small dimensions.
• The differences due to expansion are absorbed in every joint of the line. It is not required to place special expansionjoints.
• To extend an existing line is very easy just by adding new tracks.
• Quick mounting: in one pass the line is ready to work
• The electric feed can be done at the beginning of the line or at every joint of the line.
• It is very easy to change a track already assembled without moving the rest of them.
• Working voltage: up to 600V
• Working temperature: from -30ºC to +55ºC
• Degree of protection: IP20 (without rubber sealing). IP 23 (with rubber sealing)

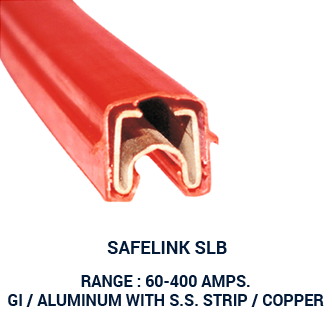

Safelink SLB Insulated Conductor Bars are used for power transmission and are touch proof. Conductor bar provides a safe and economic supply of electric power for track guided mobile machinery. Single pole individually insulated conductors are ideally used for EOT cranes.

Features:

The conductor material is as follows:

• 60,100 & 125 Amps : Galvanised Steel
• 200 & 315 Amps : Aluminium / Stainless Steel
• 160,250 & 400 Amps: Rolled Copper

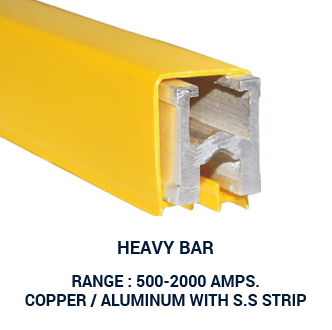

Safelink SLV insulated conductor bar system are touch proof and used for power transmission for mobile machinery. Current capacity ranges from 500 Amps to 2000 Amps rated at 100% duty cycle with nominal voltage up to 600V. Insulated Conductor Bar provides safe and economical power for track guided mobile machinery. The applications of this system are Traveling cranes, Transfer trolleys and special application used for high energy consumption under difficult conditions

Features:

The conductor material is as follows:

• Copper – 500 Amps, 800 Amps, 1000 Amps, 1250 Amps, 2000 Amps
• Aluminum with S.S Strip – 500 Amps, 800 Amps, 1000 Amps, 1250 Amps

The Aluminum conductor bar is provided with proven and patented stainless steel contact surface. For high temperature conditions a high temperature insulation cover up to 115° C is available. The phase conductor covers are yellow colour and earth insulation cover is green. The spring loaded current collectors can be used for horizontal / vertical installation in single or double version. Installation of conductor bar system is simple and maintenance is confined to a routine check of collectors.

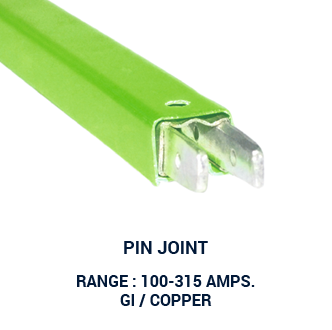

Safelink SLP Conductor bars are used for power transmission. Conductor rails provide safe and economical supply of electric power for track guided Mobile Machinery. Single Pole individually insulated conductors are ideally used for EOT Cranes

Features:

The conductor material is as follows:

• Copper – 160 Amps, 125 Amps, 315 Amps
• Galvanised Iron – 100 Amps, 125 Amps
