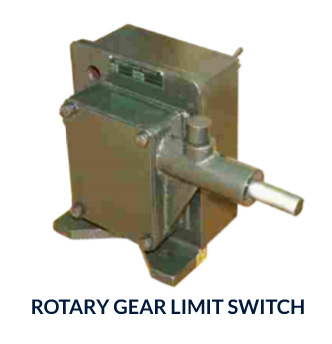

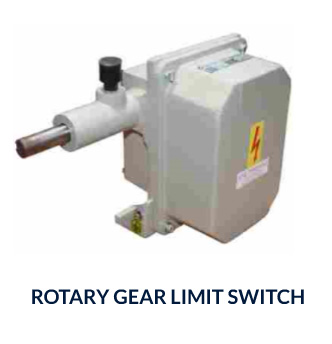

Rotary geared type limit switches are used in control circuit of reversing drives so as to limit their rotation/movement to a pre-determined position. Suitable for use on reversing drives, such as hoists, winches rolling mills, various other mechanisms used in steel plants such as coke oven feeding systems.
| Part No | Gear Ratio | Contact ( A ) | IP Protection | Enclosure |
| GRLS/48/SH/A | 48 | 2 or 4 | IP54 | Aluminium die cast |
| GRLS/60/SH/A | 60 | 2 or 4 | IP54 | Aluminium die cast |
| GRLS/96/SH/A | 96 | 2 or 4 | IP54 | Aluminium die cast |
| Part No | Gear Ratio | Contact ( A ) | IP Protection | Enclosure |

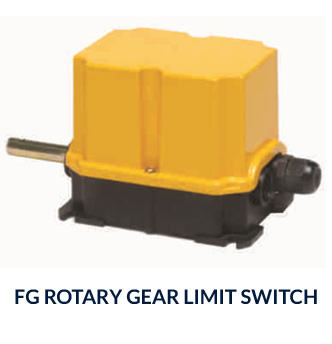

| FG12.5PA | 12.5 | 2 or 4 | IP54 | GFN |
| FG25PA | 25 | 2 or 4 | IP54 | GFN |
| FG50PA | 50 | 2 or 4 | IP54 | GFN |
| FG100PA | 100 | 2 or 4 | IP54 | GFN |
| FG200PA | 200 | 2 or 4 | IP54 | GFN |
| FG400PA | 400 | 2 or 4 | IP54 | GFN |
| Part No | Gear Ratio | Contact ( A ) | IP Protection | Enclosure |
| GRLS/48/SH/A | 48 | 2 or 4 | IP54 | Aluminium die cast |
| GRLS/60/SH/A | 60 | 2 or 4 | IP54 | Aluminium die cast |
| GRLS/96/SH/A | 96 | 2 or 4 | IP54 | Aluminium die cast |
| Part No | Gear Ratio | Contact ( A ) | IP Protection | Enclosure |
| GRLS/48/SH/A | 48 | 2 or 4 | IP54 | Aluminium die cast |
| GRLS/60/SH/A | 60 | 2 or 4 | IP54 | Aluminium die cast |
| GRLS/96/SH/A | 96 | 2 or 4 | IP54 | Aluminium die cast |
| Drive | Worm drive |
| Cable Entries | 3/4’’ Cable Gland |
| Contact Material | Double Break Silver Cadmium |
| Rated Voltage Insulation | 500 V.A.C |
| Cam settings | Adjustable |
